Complete Product Range

Probes & Measuring Systems

Every product engineered to international standards — fully manufactured in India.

Thermocouple Probes Oxygen Probes Samplers ULC Probes 2-in-1 / 3-in-1 HydroinS System Wireless System Instruments Accessories

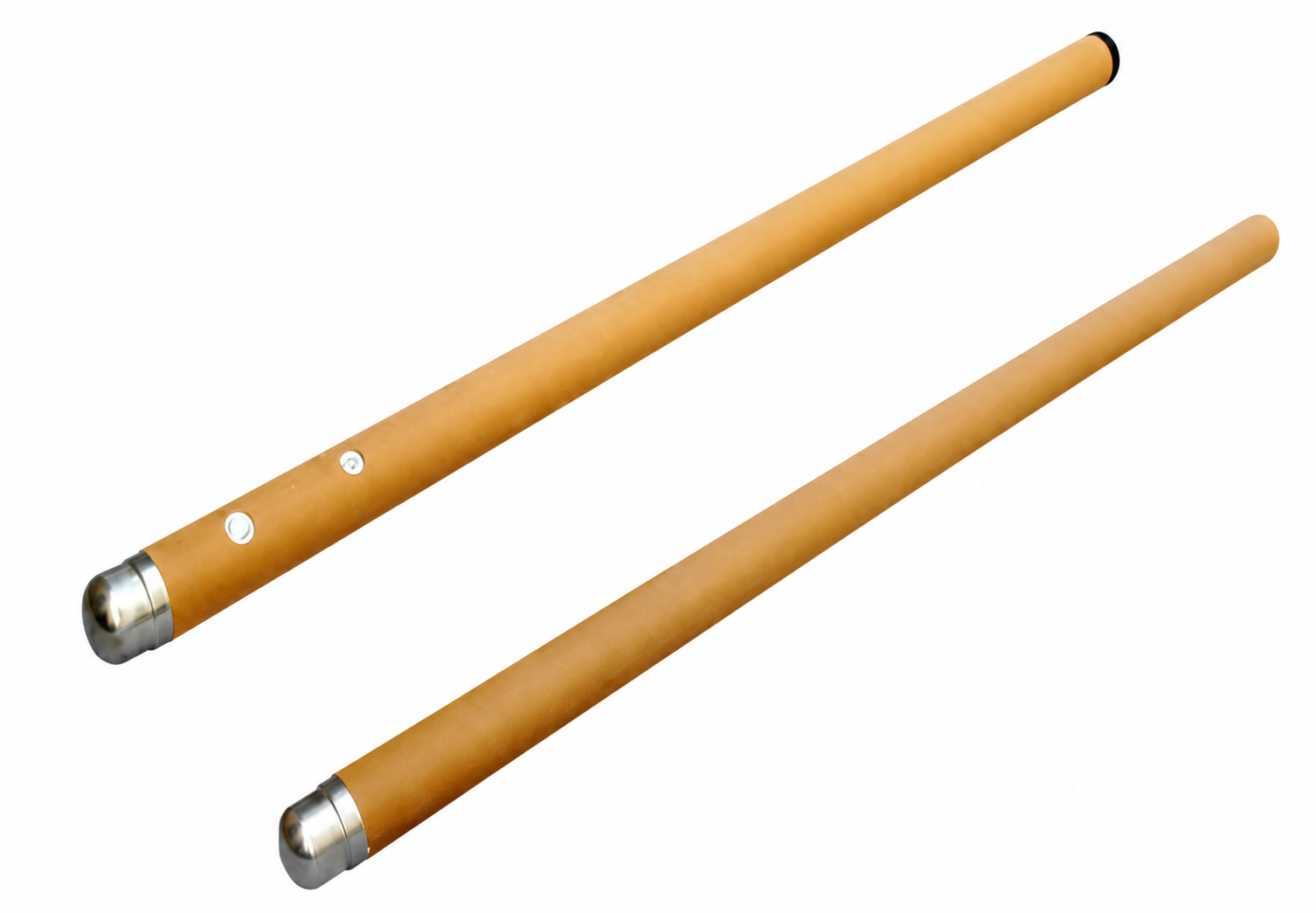

Thermocouple Sub-Lance Heads Thermocouple Probe Diagram
Temperature Measurement

MINTEMP — Immersion Thermocouple Probes

MINCO INDIA's MINTEMP thermocouple probes are precision-engineered immersion consumables for accurate temperature measurement of molten steel and hot metal in converters, electric arc furnaces, and ladle furnaces. Manufactured to international design specifications and calibrated as per BS EN 60584-1:1996 (ITS90), they deliver consistent, repeatable readings even under the most demanding steelmaking conditions.

Our thermocouple sub-lance heads are designed with one-to-one dimensional compatibility with all major foreign brands, enabling seamless integration with your existing lance systems without any hardware changes.

Certification BS EN 60584-1:1996 (ITS90)
Calibration BS EN 60584-2:1993
Application BOF, EAF, Ladle Furnace
Compatibility All Major Foreign Brands
Annual Capacity 2,000,000+ Probes
Origin Made in India (Kolkata)
Enquire Now

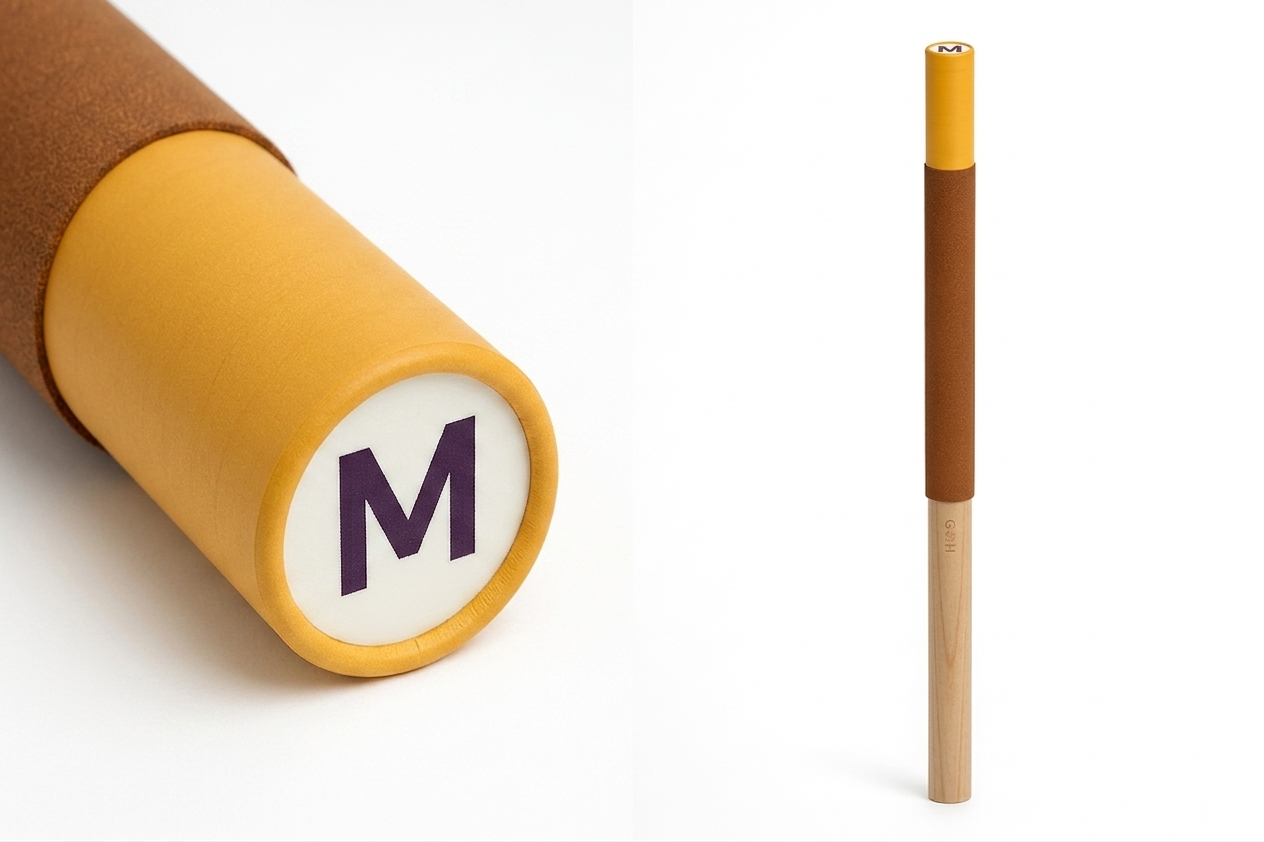

Oxygen Probe Low PPM Oxygen Probes
Oxygen Measurement

Oxygen Probes — Low PPM & High PPM

MINCO INDIA manufactures both Low PPM and High PPM oxygen probes for dissolved oxygen measurement in molten steel. Based on the zirconia electrolyte cell principle, these probes provide rapid and highly accurate oxygen activity readings at tapping and during ladle treatment.

Our oxygen probes are dimensionally equivalent to leading international makes, ensuring they can be used with your existing measurement equipment without modification.

Type Low PPM & High PPM
Sensing Element Zirconium Oxide (ZrO₂)
Application BOF Tapping, Ladle, EAF
Annual Capacity 200,000 Probes
Compatibility All Major Foreign Brands
Quality ISO 9001 Certified
Enquire Now

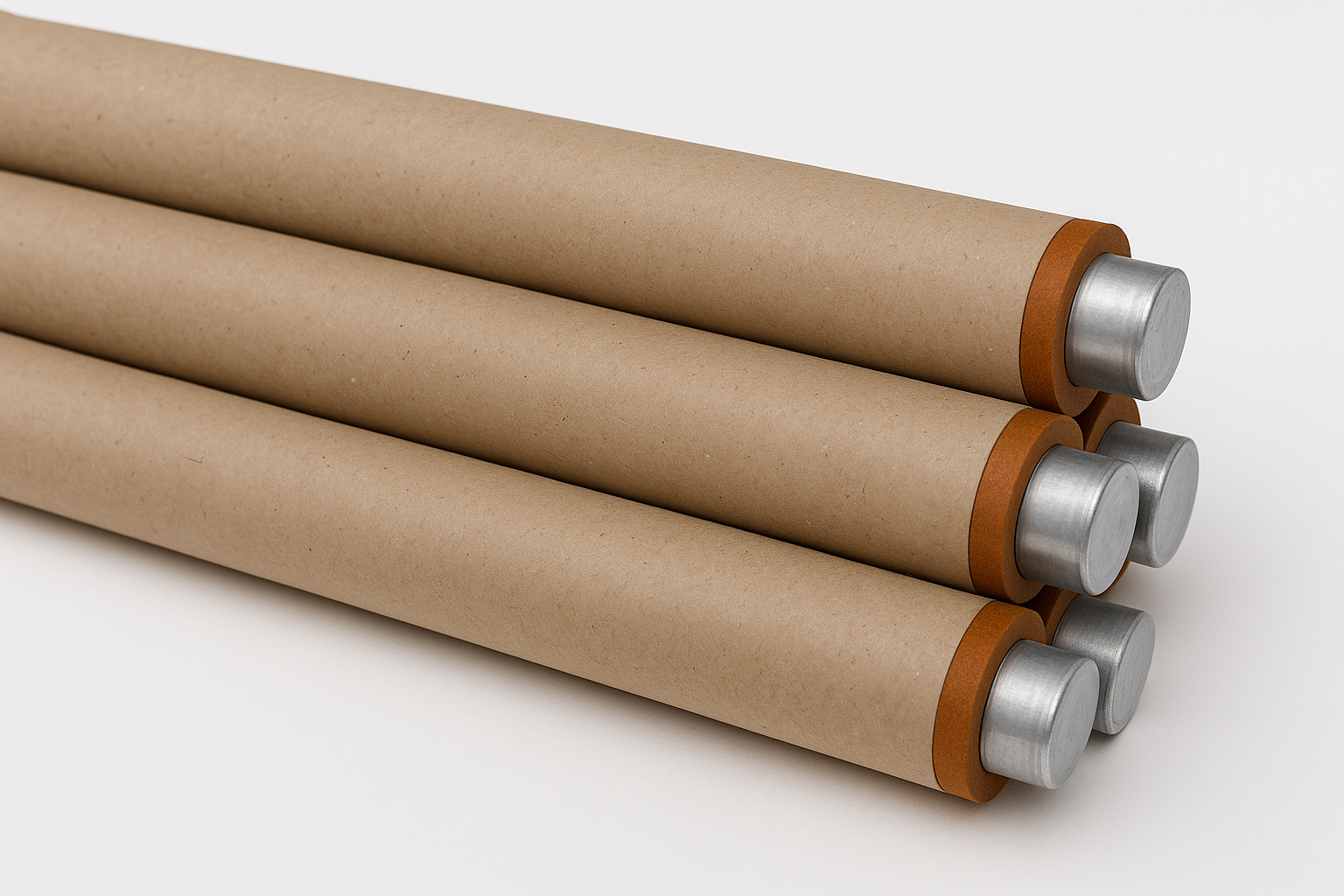

Samplers Bundle Oxygen Samplers
Steel Sampling

Zircon & Aluminium Samplers

MINCO INDIA produces a full range of steel samplers for chemical analysis of molten metal. Our Zircon samplers and Aluminium samplers are designed to capture representative steel samples rapidly and safely from the converter, ladle, or tundish.

With a production capacity of 1.2 million samplers per year, we can meet the high-volume demand of large integrated steel plants while maintaining consistent quality and short lead times.

Types Zircon & Aluminium
Application BOF, Ladle, Tundish
Annual Capacity 1,200,000 Samplers
Purpose Chemical Analysis
Enquire Now

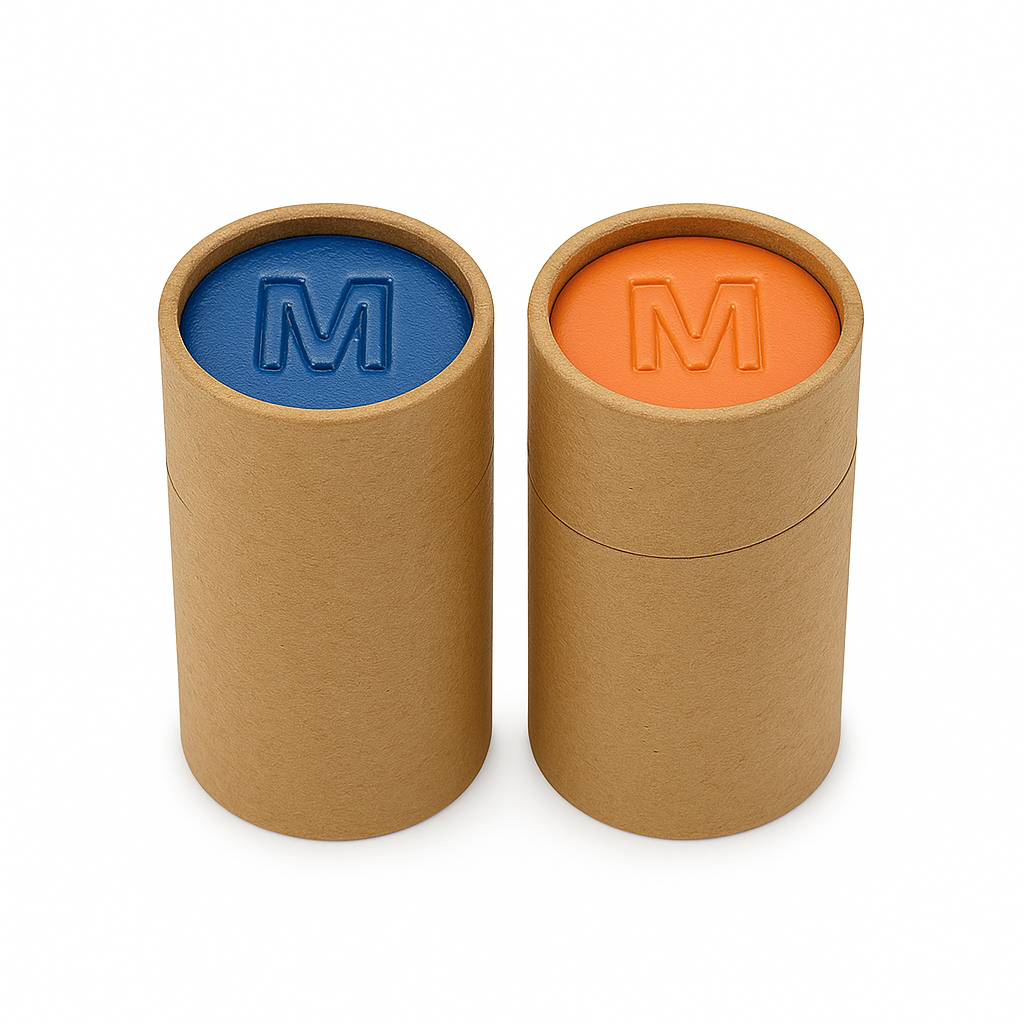

Ultra Low Carbon Probe
Carbon Measurement

Ultra Low Carbon (ULC) Probes

For the manufacture of ultra-low carbon steel grades, precise and reliable carbon activity measurement is critical. MINCO INDIA's ULC probes are specifically designed for the demanding conditions of secondary metallurgy, providing fast and accurate carbon readings to support the RH degassing and VOD refining processes.

Engineered to international design parameters with a robust construction that withstands the extreme temperatures of molten steel treatment.

Application RH Degasser, VOD
Grade Suitability Ultra Low Carbon Steels
Compatibility All Major Foreign Brands
Quality ISO 9001 Certified
Enquire Now

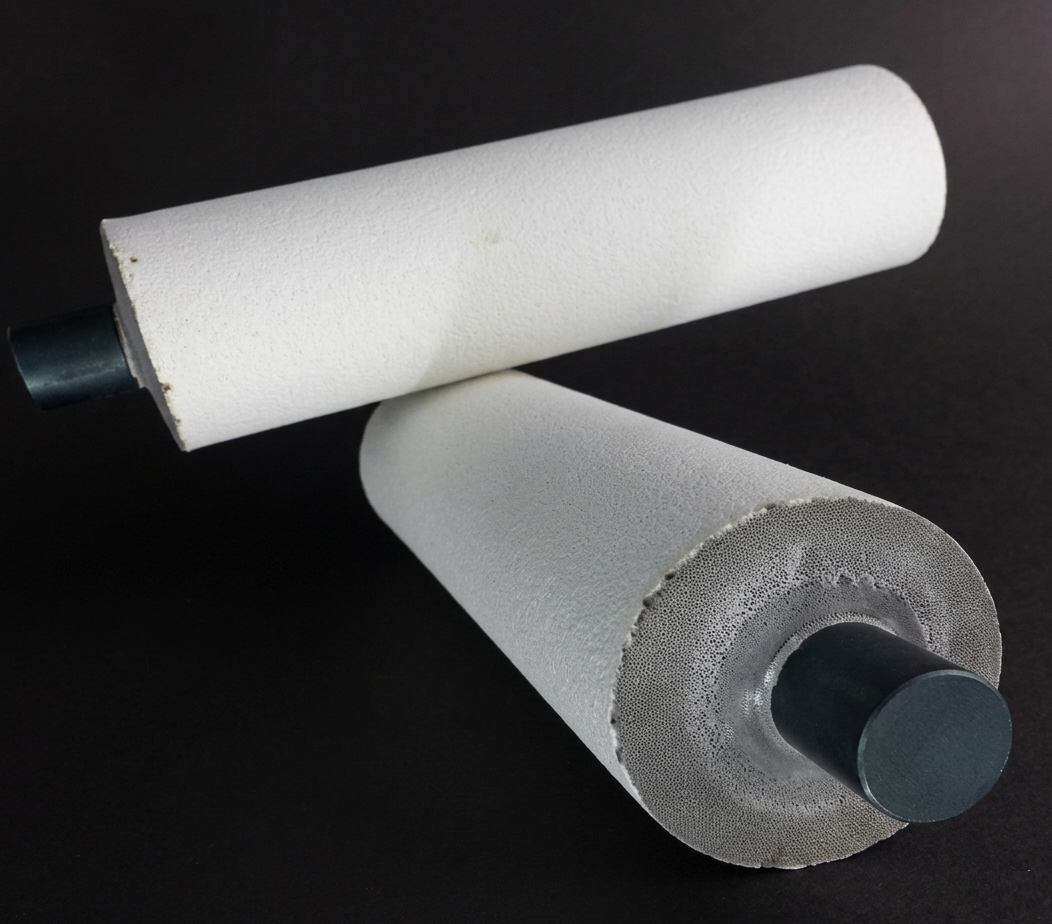

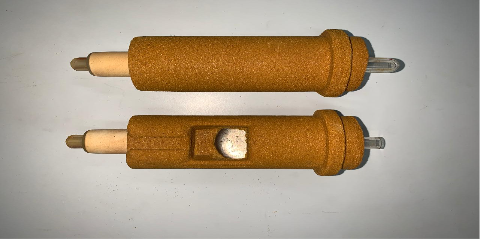

2-in-1 Probe 3-in-1 Probe
Multi-Function Probes

2-in-1 & 3-in-1 Combination Probes

MINCO INDIA's combination probes allow simultaneous measurement of multiple steel parameters in a single immersion, dramatically reducing tap-to-tap cycle times and improving process efficiency. Available in 2-in-1 (temperature + oxygen) and 3-in-1 (temperature + oxygen + sample) configurations.

Each probe is colour-coded and clearly marked for easy identification and handling on the steel plant floor. Dimensionally compatible with all standard sublance systems.

2-in-1 Temperature + Oxygen
3-in-1 Temp + Oxygen + Sample
Benefit Single Immersion Measurement
Identification Colour-Coded
Enquire Now
HYDROINS Online Hydrogen Measuring System
Hydrogen Measurement

HYDROINS — Online Hydrogen Measuring System

The HYDROINS system from MINCO INDIA provides real-time measurement of dissolved hydrogen in molten steel. Hydrogen control is critical for producing high-quality steel free from porosity and internal defects — particularly for automotive, deep drawing, and pipeline grades.

The system consists of a robust rack-mounted computer unit with a clear graphical display, paired with an intuitive control panel (PPM readout, pressure gauge, and measurement controls). Results are available within minutes of immersion.

System HYDROINS (Online)
Measurement Dissolved H₂ in Molten Steel
Display Real-Time PPM Readout
Application Ladle Treatment, Tapping
Enquire Now
METNET 2.0 System
Measuring Equipment

METNET 2.0 — Temperature & Oxygen Measuring System

The METNET 2.0 is MINCO INDIA's flagship panel-mount measuring unit, providing simultaneous readout of temperature (°C), oxygen (PPM), millivolts, and aluminium (%) on a large, high-resolution colour display. Designed for integration into converter control pulpits and BOF platforms.

The compact industrial enclosure is key-locked for security, features rear-panel connectivity (serial ports, power input), and is built to withstand the harsh electrical and thermal environment of a steel plant.

Model METNET 2.0
Parameters Temp, O₂ PPM, mV, % Al
Display Large Colour Touchscreen
Format Panel Mount (Rack)
Enquire Now
MI-866 Panel Instrument MI-866 Handheld
Portable & Panel Instruments

MI-866 — Temperature & Oxygen Instrument

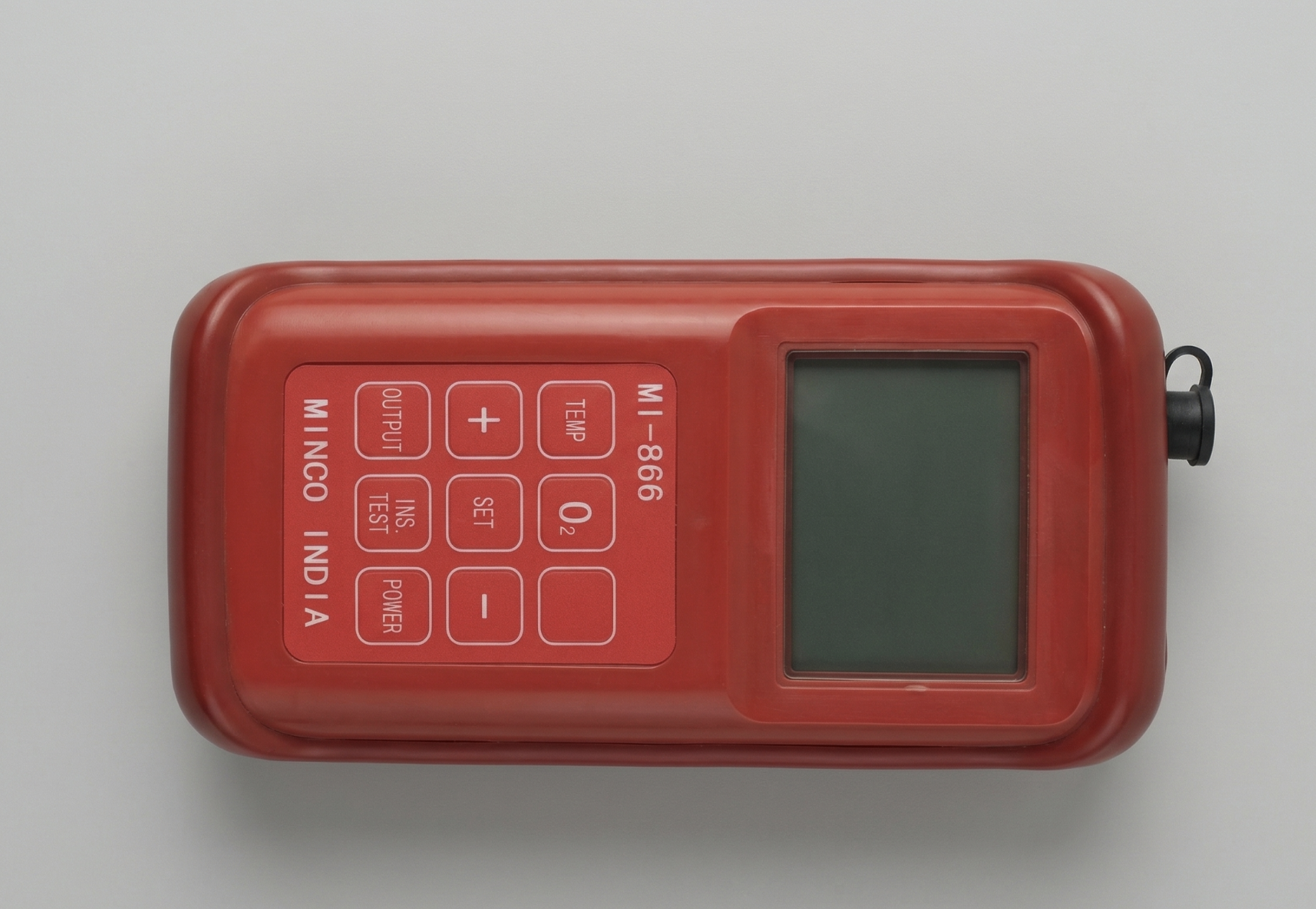

The MI-866 is available in both a robust handheld format (red ABS body, IP-rated) and a compact panel-mount format (MI-866 teal panel). Both versions measure temperature and dissolved oxygen from a single probe connection, with simple intuitive controls for SET, TEMP, O₂, INS.TEST, OUTPUT, and POWER functions.

Model MI-866
Formats Handheld & Panel Mount
Parameters Temperature & O₂
Display LCD with Backlight
Enquire Now
Wireless Temperature Oxygen Measuring System
Wireless Measurement

Wireless Temperature + Oxygen Measuring System

MINCO INDIA's Wireless Temperature + Oxygen Measuring System eliminates the need for long cable runs on the steel plant floor. The system transmits real-time temperature and dissolved oxygen readings wirelessly from the sublance measurement point to the control pulpit — improving operator safety and installation flexibility.

Designed for converter, EAF, and ladle furnace environments, the wireless system is compatible with MINCO's standard probe range and can be retrofitted to existing lance systems.

Parameters Temperature + Oxygen (O₂)
Connectivity Wireless (Cable-Free)
Application BOF, EAF, Ladle Furnace
Compatibility MINCO Standard Probe Range
Enquire Now
MINTHERM Temperature Measuring Instrument
Temperature Instrument

MINTHERM — Temperature Measuring Instrument for Liquid Steel / Hot Metal

The MINTHERM is MINCO INDIA's dedicated temperature measurement instrument for liquid steel and hot metal applications. It measures bath temperature via an immersion thermocouple and includes built-in signal lights for clear, at-a-glance process status indication:

  • Ready — Green light: system is ready to measure
  • Run — Yellow light: measurement in progress
  • Complete — Red light: reading captured
Measurement Bath Temperature
Signal Lights Green / Yellow / Red
Application Liquid Steel & Hot Metal
Quality ISO 9001:2015 Certified
Enquire Now
Accessories & Consumables

Supporting Equipment & Accessories

Everything you need for a complete, reliable steelmaking measurement system.

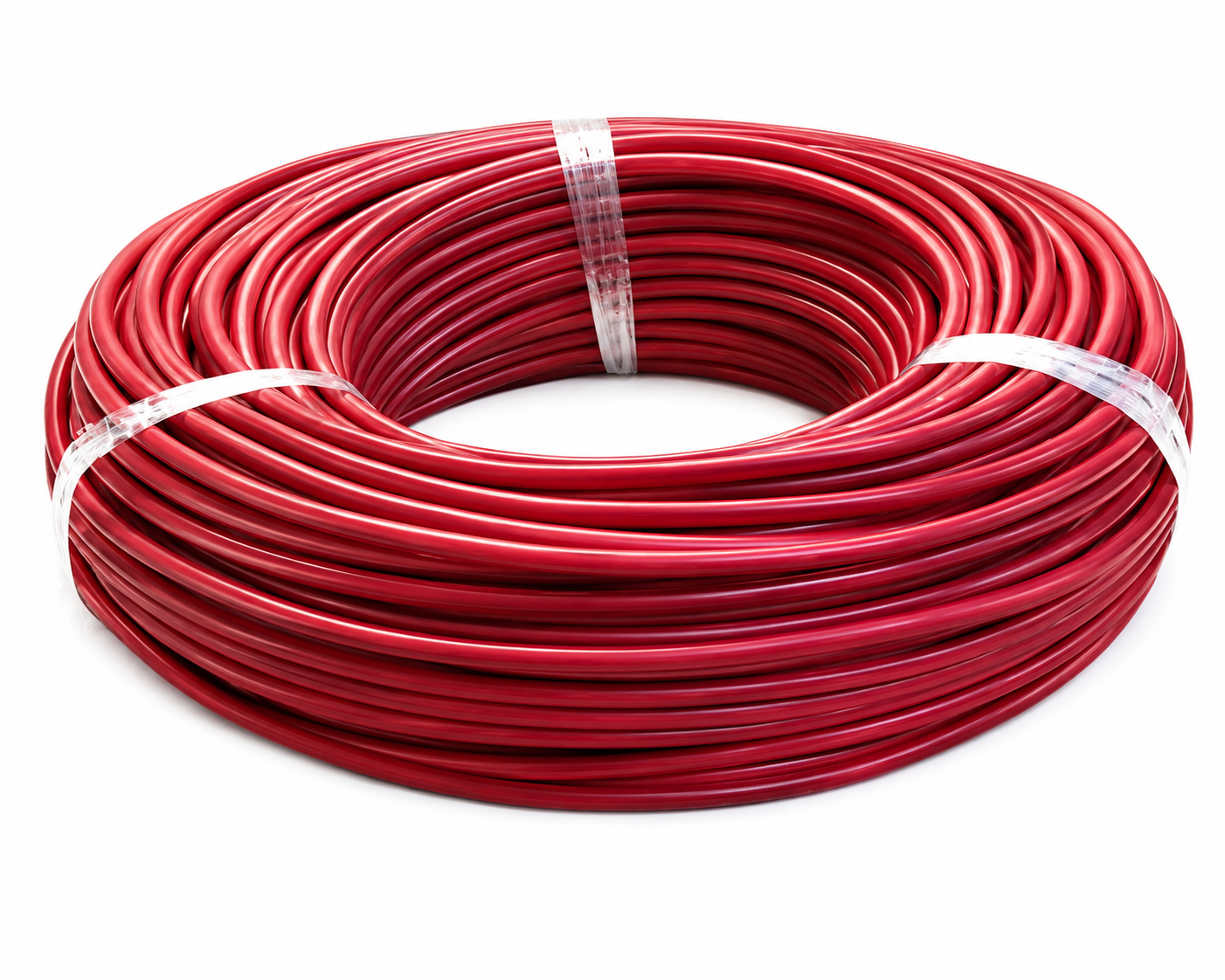

Thermocouple Extension Wire
Wiring

MI Cable & Compensating Cable

High-quality thermocouple compensating cables and MI cables for connecting probes to measuring instruments. Available in various gauge and insulation types for steel plant environments.

Enquire →

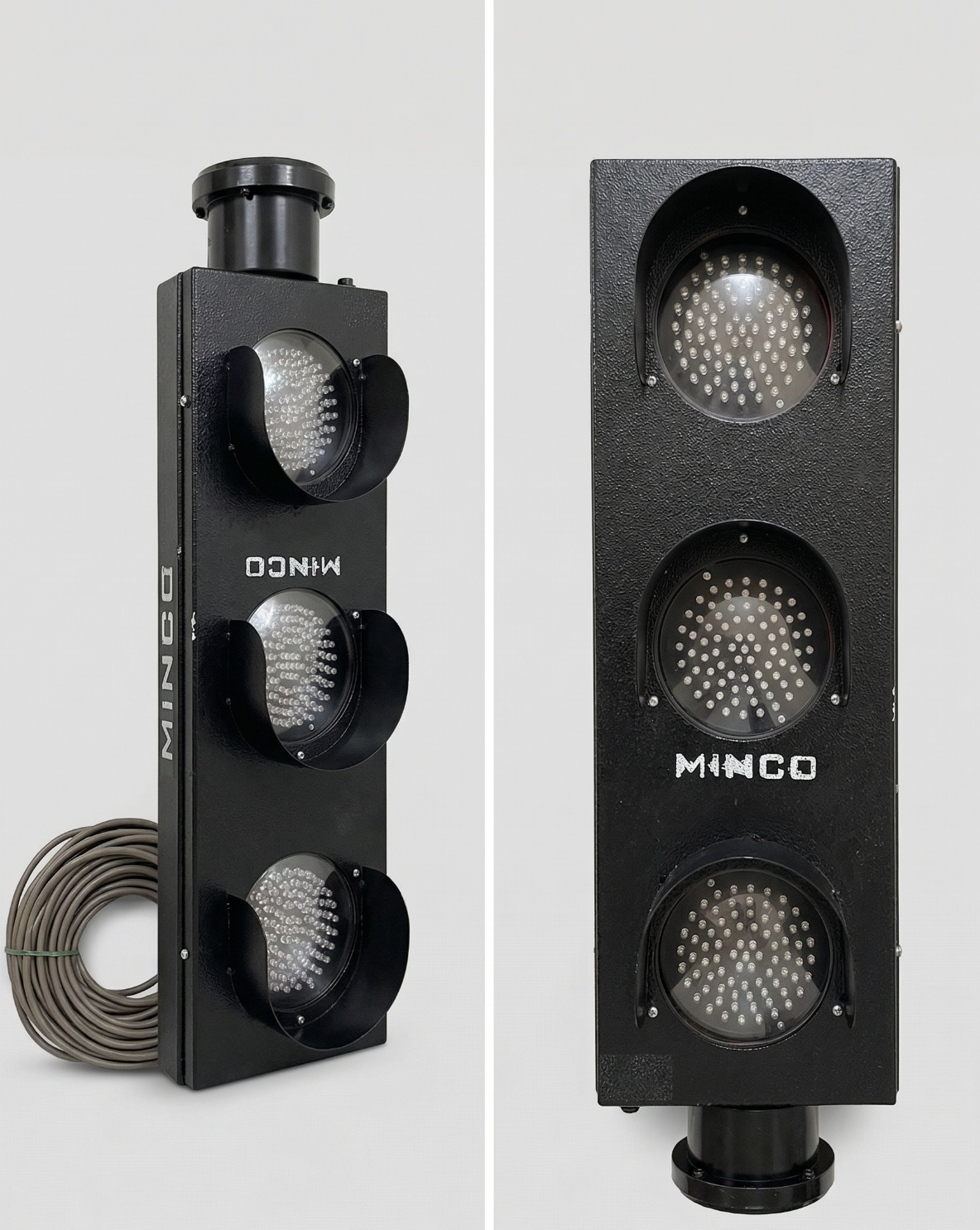

MINCO Signal Lamp
Signalling

Display Unit & Signal Indicator

Heavy-duty industrial signal lamps with three-position LED indicators (Ready / Run / Complete) and large-format display units for remote readout on BOF platforms.

Enquire →

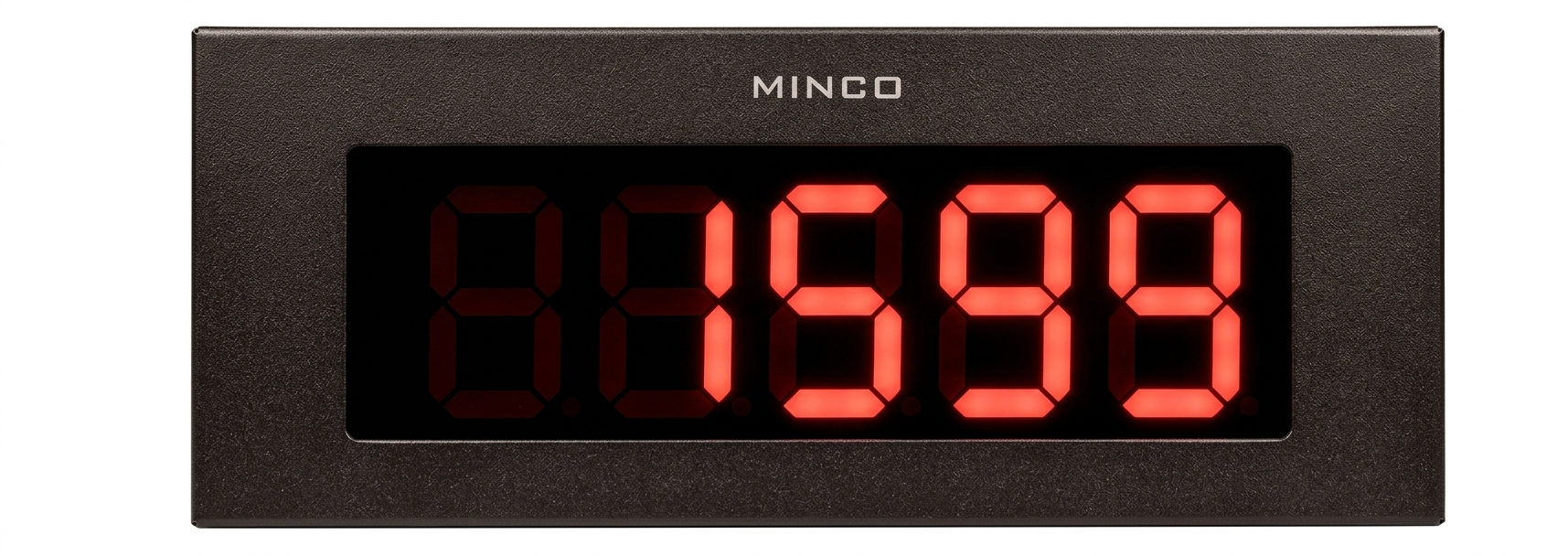

MINCO LED Digital Display
Display

MINCO LED Digital Display

Large-format 6-digit LED display units for remote temperature and oxygen readout. Ideal for converter control rooms and BOF platform operator visibility.

Enquire →
Hydrogen Pin Sampler
Sampling

Hydrogen Pin Sampler

Specialised pin samplers for hydrogen analysis of molten steel. Used alongside the HydroinS online system or as standalone hydrogen sampling solution.

Enquire →
Calibrator
Calibration

Calibrator

Precision calibration instruments for verifying and setting the accuracy of thermocouple and oxygen measuring systems. Essential for maintaining ISO-compliant measurement traceability.

Enquire →

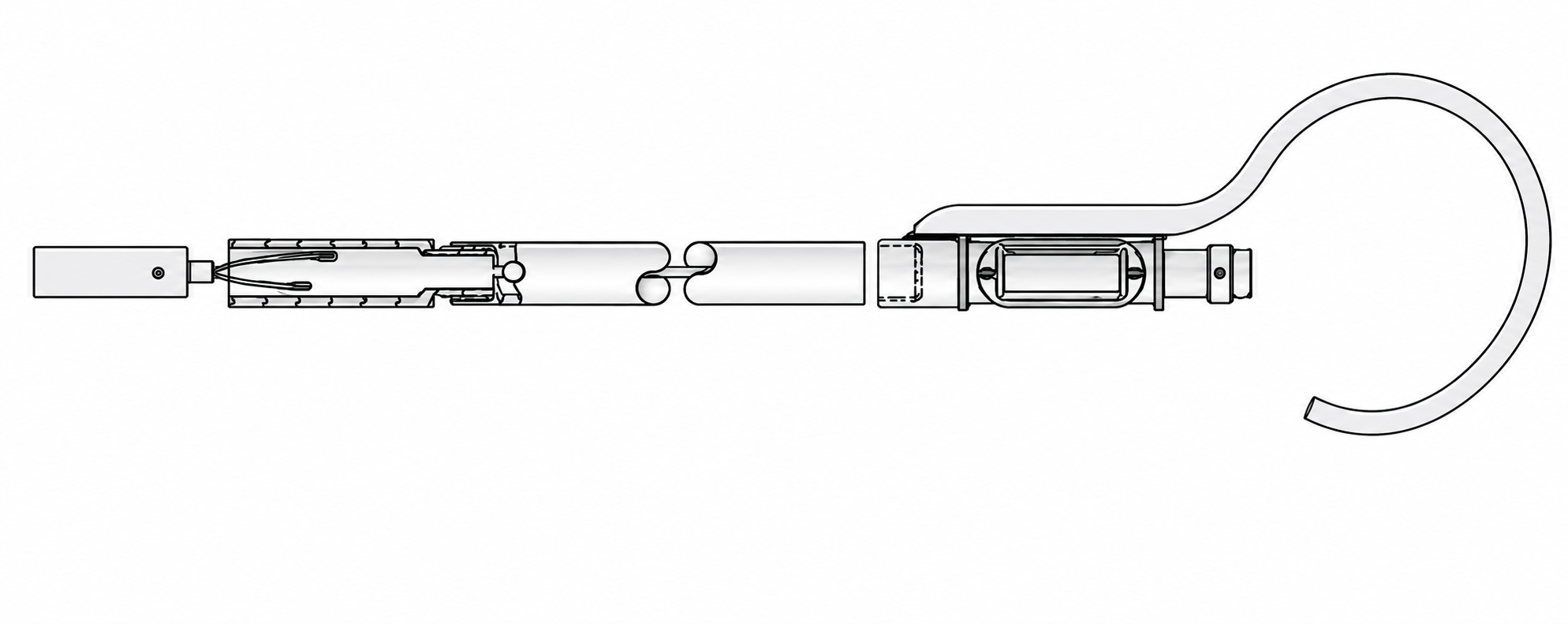

Industrial Connectors and Lance
Connectors

Industrial Connectors, Contact Block & Lance

Complete range of industrial connectors, contact blocks, and lance components for sublance systems. Manufactured to interface with all major lance configurations.

Enquire →

Need a Custom Solution?

Our engineering team works with steel plants to specify the right probe and system combination for your application. Contact us for a technical consultation.
